As a leading supplier of spectrophotometry instruments, Implen strives to meet the evolving needs of our clients by focussing on four key aspects: Quality, Accuracy, Innovation, and Customer Support. Our patented Sample Compression™ and True Path Technology™ guarantee consistent and highly accurate quantification of DNA, RNA, and proteins, whilst also making our devices completely calibration-free. Since the introduction of the first Implen NanoPhotometer™ in 2006, many of the most prestigious biological, chemical, and pharmaceutical companies as well as research organizations have come to rely on Implen products. And by listening to our clients, we continue to innovate and develop new solutions that will make life in the lab easier.

Top Categories

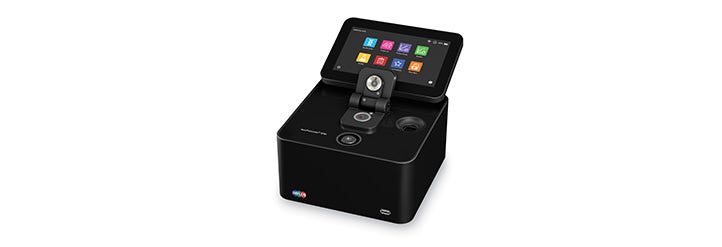

Nanovolume and Cuvette Functionality

Combine nanovolume and cuvette measurements to expand the range of applications.

NanoPhotometer™ NP80
Implen_Nanometer_Cuvettes

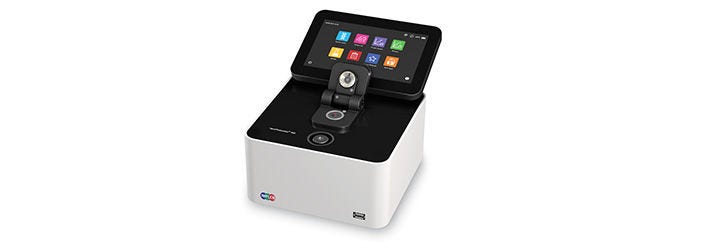

Nanovolume Measurements

Use as little as 0.3µL to quantify a range of samples.

    NanoPhotometer™ N60 NanoPhotometer™ N50
    Implen_Nanovlume_Measurements

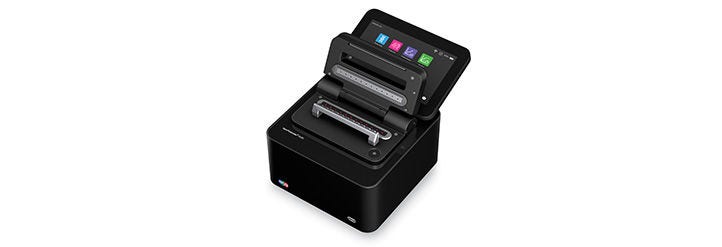

    High-Throughput Spectrophotometry

    Measure up to 12 samples in 30 seconds for high-throughput processing of large quantities of samples.

    NanoPhotometer™ N120
    Implen_High_throughput_Spectrometry.

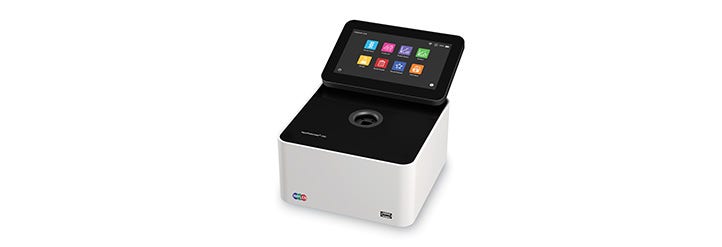

    Cuvette Measurements

    Quick, easy and accurate analysis using cuvettes.

        NanoPhotometer™ C40 Implen OD600™ Photometer
        Implen_Cuvette_Measurements

        User and Quality Management

        Manage user access and verify device accuracy with our 21 CFR Software and IQ/OQ packages.

              21 CFR Software IQ/OQ Packages
              Implen_user_quality_management

              Implen NanoPhotometer™ Accessories

              Implen NanoPhotometer Accessories include cuvettes and standard solutions.

                    DiluCell™ 10 Cuvettes Implen™ Standard Solutions
                    Implen_nanophotometer_accessories

                    Featured Resources

                    The Implen Advantage

                    Implen is a leading supplier of spectrophotometry instruments with a strong focus on quality, accuracy, and customer service. Our patented technology sets our devices apart in accuracy and reliability. Read more about what makes Implen devices so unique here.

                    Download
                    Implen_Resources_Implen_Advantage

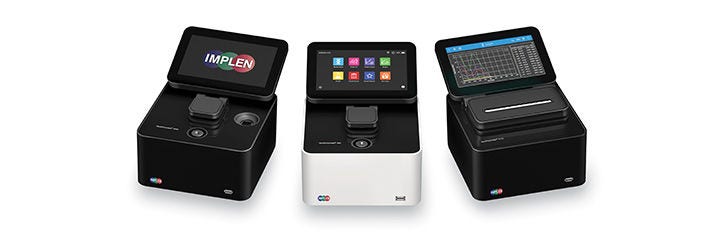

                    Find the Right NanoPhotometer™ for Your Lab

                    Implen offers a range of NanoPhotometers to meet the spectrophotometric needs and budgets of all laboratories. Find out more here.

                    Download
                    Implen_Resources_NanoPhotometer

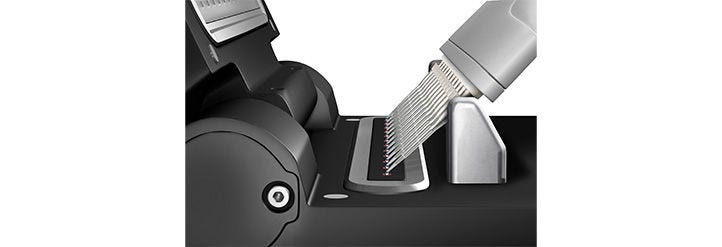

                    High-throughput Spectrophotometry

                    The Implen N120 NanoPhotometer allows for high-throughput quantifications whilst remaining highly accurate and reliable due to our patented technology.

                    Download
                    Implen_Resources_Spectrometry

                    All Products

                    Filtered Search Results

                    Products from some of our suppliers do not display in filtered search results. Please clear all filters to see these products.

                    Narrow Results

                    Narrow Results

                    category

                    For Use With (Equipment)

                    • (1)
                    • (1)
                    • (4)
                    • (2)
                    • (1)
                    • (1)
                    • (1)

                    Languages

                    • (2)
                    • (9)

                    Product Type

                    • (1)
                    • (3)
                    • (2)
                    • (1)
                    • (1)
                    • (3)

                    Type

                    • (3)
                    • (2)
                    • (4)
                    • (2)

                    Wavelength Range

                    • (1)
                    • (8)
                    • (1)
                    • (1)

                    Detector Type

                    • (9)
                    • (1)

                    Display

                    • (9)
                    • (1)

                    Light Source

                    • (1)
                    • (9)

                    Spectral Bandwidth

                    • (6)
                    • (2)
                    • (1)
                    • (1)

                    Voltage

                    • (1)
                    • (9)

                    1 – 15 of 23 results
                    1

                    Implen™ DiluCell™ 10 - Disposable Cuvette

                    Implen DiluCell™ 10 provides an automatic 1/10 dilution of higher concentrated samples for standard 1 cm cuvette spectrophotometers. Combined with low sample volume requirements and bubble free filling, the DiluCell™ allows for convenient spectrophotometric analysis from 340-1100 nm.

                    2

                    Implen OD600™ Photometer, EU Plug

                    Measure cell density and turbidity, fast and accurately with the lightweight, portable Implen OD600 instrument. No sample dilution required due to large dynamic detection range. No adapters required as the Implen OD600 sample holder design that is compatible with majority of tubes and cuvettes.

                    3

                    Implen™ NanoPhotometer™ N60 Micro-Volume UV-VIS Spectrophotometer

                    The Implen NanoPhotometer™ N60 UV/Vis spectrophotometer for NanoVolume applications. Quantify DNA, RNA, proteins and scan other samples within seconds.

                    Connections 2x USB A, USB B, HDMI, Ethernet, WiFi
                    Processor Linux based NPOS
                    Spectral Bandwidth <1.8 nm
                    Languages English, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
                    Absorbance Range 0.02 to 330 A
                    Pathlength 0.67 and 0.07 mm
                    For Use With (Application) Nucleic Acids, Protein UV, Protein Assays, Kinetics, OD600, Wavelength, Wavescan, Standard Curve, Absorbance Ratio, Concentration, Custom
                    Light Source Xenon Flash
                    Measurement Time 2.5 to 4.0 sec
                    Sample Volume (Metric) 0.3 to 2 μL
                    Detector Type 3648-element CCD Array
                    Dimensions (L x W x H) 20 x 20 x 12 cm
                    Wavelength Accuracy ± 0.75 nm
                    No. of Samples 1
                    System Requirements Windows 7, 8, 10 (32 & 64 bit); OS X, iOS; Android OS
                    Voltage 90/250 V
                    Stray Light < 0.5% @ 240 nm using NaI
                    Absorbance Accuracy < 1.75% at 0.7 A at 280 nm of the reading
                    Wavelength Range 200 to 900 nm
                    Measurement Range 1 to 16,500 ng/μL
                    Display 7 in. Glove Compatible Touchscreen, 1024 x 600 pixels
                    4

                    Implen™ NanoPhotometer™ C40 Cuvette UV-VIS Spectrophotometer

                    For cuvette applications. Suitable for all common photometric measurements like protein assays, kinetics and standard curve. Intuitive touchscreen operation, small footprint and network integration for convenient lab bench operation. Recalibration-free patented technology.

                    Connections 2x USB A, USB B, HDMI, Ethernet, WiFi
                    Operating Temperature 37 °C ± 0.5 °C
                    Beam Center Height 8.5 mm
                    Processor Linux based NPOS
                    Spectral Bandwidth <1.8 nm
                    Languages English, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
                    Absorbance Range 0 to 2.6 A
                    Pathlength 10, 5, 2, 1, 0.5 mm
                    For Use With (Application) Nucleic Acids, Protein UV, Protein Assays, Kinetics, OD600, Wavelength, Wavescan, Standard Curve, Absorbance Ratio, Concentration, Custom
                    Light Source Xenon Flash
                    Measurement Time 2.5 sec
                    Detector Type 3648-element CCD Array
                    Type Spectrophotometer
                    Dimensions (L x W x H) 200 x 200 x 120 mm
                    Wavelength Accuracy ± 0.75 nm
                    No. of Samples 1
                    System Requirements Windows 7, 8, 10 (32 & 64 bit); OS X, iOS; Android OS
                    Voltage 90/250 V
                    Absorbance Accuracy < 1.75 % at 0.7 A (0.67 mm path) at 280 nm of the reading
                    Wavelength Range 200 to 900 nm
                    Display 7 in. Glove Compatible Touchscreen, 1024 x 600 pixels
                    5

                    Implen™ NanoPhotometer™ NP80 Nano-Volume and Cuvette UV-VIS Spectrophotometer

                    The Implen NanoPhotometer™ NP80 UV/Vis spectrophotometer for NanoVolume and cuvette applications. Quantify DNA, RNA, proteins and scan other samples within seconds.

                    Connections 2x USB A, USB B, Ethernet, WiFi
                    Operating Temperature 37 °C ± 0.5 °C Cuvette
                    Beam Center Height 8.5 mm
                    Processor Linux based NPOS
                    Spectral Bandwidth <1.8 nm
                    Languages English, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
                    Absorbance Range 0.02 to 330 A NanoVolume, 0 to 2.6 A Cuvette
                    Pathlength 0.67 and 0.07 mm
                    For Use With (Application) Nucleic Acids, Protein UV, Protein Assays, Kinetics, OD600, Wavelength, Wavescan, Standard Curve, Absorbance Ratio, Concentration, Custom
                    Light Source Xenon Flash
                    Measurement Time 2.5 to 4.0 sec
                    Sample Volume (Metric) 0.3 to 2 μL
                    Detector Type 3648-element CCD Array
                    Dimensions (L x W x H) 20 x 20 x 12 cm
                    Wavelength Accuracy ± 0.75 nm
                    No. of Samples 1
                    System Requirements Windows 7, 8, 10 (32 & 64 bit); OS X, iOS; Android OS
                    Voltage 90/250 V
                    Stray Light < 0.5% @ 240 nm using NaI
                    Absorbance Accuracy < 1.75% at 0.7 A at 280 nm of the reading
                    Wavelength Range 200 to 900 nm
                    Measurement Range 1 to 16,500 ng/μL
                    Display 7 in. Glove Compatible Touchscreen, 1024 x 600 pixels
                    6

                    Implen™ IQ/OQ documentation for the NanoPhotometer™ NP80 incl. Holmium Glass Filter and Neutral Density Glass Filter Set and Standard Solution

                    In compliance with international standards in regulated environments, documented verification is provided with Installation Qualification and Operation Qualification (IQ/OQ) Package Conforming Data to verify that instruments are working according to specifications in case of an audit.

                    8

                    Implen™ NanoPhotometer™ N50-Touch Micro-Volume UV-VIS Spectrophotometer

                    The Implen NanoPhotometer™ N50 UV/Vis spectrophotometer for NanoVolume applications. Quantify DNA, RNA, proteins and scan other samples within seconds. Intuitive touchscreen operation, small footprint and network integration for convenient lab bench operation.

                    9

                    Implen OD600™ 24 Month Warranty Extension

                    24 month warranty extension for Implen OD600.

                    10

                    Implen™ NanoPhotometer™ IQ/OQ Documentation and Standard Solution

                    In compliance with international standards in regulated environments, documented verification is provided with Installation Qualification and Operation Qualification (IQ/OQ) Package Conforming Data to verify that instruments are working according to specifications in case of an audit.

                    Product Type IQ/OQ Package Conforming Data
                    Certifications/Compliance According to Internal SOP
                    Calibration Type Self-calibration
                    Product Line NanoPhotometer
                    11

                    Implen OD600™ IQOQ Package Documentation

                    IQ/OQ Documentation package for the Implen OD600 (provided as Excel on USB stick) including two Neutral Density Glass filters.

                    12

                    Implen™ NanoPhotometer™ N120 Multichannel Micro-Volume UV-VIS Spectrophotometer

                    The Implen NanoPhotometer™ N120 scans up to 12 samples in just 20 seconds. Quantifying DNA, RNA and proteins has never been faster. Intuitive touchscreen operation, small footprint and network integration for convenient lab bench operation. Recalibration-free patented technology Made in Germany.

                    Processor Linux based NPOS
                    Spectral Bandwidth <2.5 nm
                    Languages English, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
                    Absorbance Range 0.04 to 160 A
                    Pathlength 1 and 0.125 mm
                    For Use With (Application) Nucleic Acids, Protein UV, Protein Assays, Kinetics, OD600, Wavelength, Wavescan, Standard Curve, Absorbance Ratio, Concentration, Custom
                    Light Source Xenon Flash
                    Measurement Time 1.7 - 2.5 seconds
                    Sample Volume (Metric) 2 to 3.5 μL
                    Detector Type 3648-element CCD Array
                    Dimensions (L x W x H) 20 x 20 x 12 cm
                    Wavelength Accuracy ± 0.75 nm
                    No. of Samples 1 to 12
                    System Requirements Windows 7, 8, 10 (32 & 64 bit); OS X, iOS; Android OS
                    Voltage 90/250 V
                    Stray Light < 1% @ 240 nm using NaI
                    Wavelength Range 200 to 900 nm
                    Display 7 in. Glove Compatible Touchscreen, 1024 x 600 pixels
                    13

                    Implen™ IQ/OQ documentation for the NanoPhotometer™ C40 incl. Holmium Glass Filter and Neutral Density Glass Filter Set

                    In compliance with international standards in regulated environments, documented verification is provided with Installation Qualification and Operation Qualification (IQ/OQ) Package Conforming Data to verify that instruments are working according to specifications in case of an audit.

                    14

                    Implen OD600™ 12 Month Warranty Extension

                    12 month warranty extension for Implen OD600.

                    15

                    Implen OD600™ Calibration/Certification

                    Calibration and certification of glass filter set for the validation of the Implen OD600.

                    Promotions

                    Helpful Resources

                    Implen NanoPhotometers Brochure

                    Implen is a leading supplier of spectrophotometry instruments with a strong focus on quality, accuracy, and customer service. Our patented technology sets our devices apart in accuracy and reliability. Read more about what makes Implen devices so unique.

                    Learn More
                    Implen_Resources_NanoPhotometer_Brochure

                    Find the right NanoPhotometer for your lab!

                    Implen offers a range of NanoPhotometers to meet the spectrophotometric needs and budgets of all laboratories. Find out more here.

                    Learn More
                    Implen_Resources_Find_Right_NanoPhotometer

                    Implen N120 NanoPhotometer Brochure

                    The Implen N120 NanoPhotometer allows for high-throughput quantifications whilst remaining highly accurate and reliable due to our patented technology.

                    Learn More
                    Implen_Resources_Implen N120_NanoPhotometer

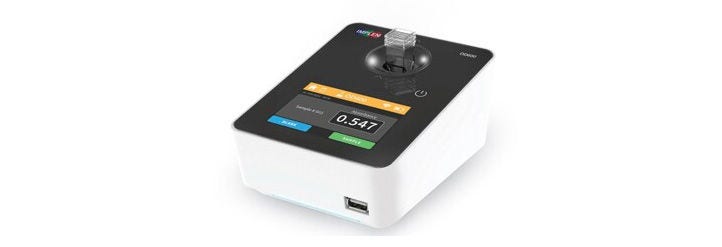

                    Introducing the Implen OD600

                    Modern, stand-alone, battery powered device with direct operation via the touchscreen display.

                    Learn More
                    Implen_Resources_Introducing_Implen

                    More Resources

                    Implen NP80 NanoPhotometer Datasheet

                    Filename
                    22653_NP80-Implen-NanoPhotometer.pdf
                    Size
                    225 KB
                    Format
                    application/pdf

                    Implen N60 NanoPhotometer Datasheet

                    Filename
                    22653_N60-Implen-NanoPhotometer.pdf
                    Size
                    218 KB
                    Format
                    application/pdf

                    Implen N120 NanoPhotometer Datasheet

                    Filename
                    22653_N120-Implen-NanoPhotometer.pdf
                    Size
                    239 KB
                    Format
                    application/pdf

                    Implen N50 NanoPhotometer Datasheet

                    Filename
                    22653_N50-Implen-NanoPhotometer.pdf
                    Size
                    216 KB
                    Format
                    application/pdf

                    Implen C40 NanoPhotometer Datasheet

                    Filename
                    22653_C40-Implen-NanoPhotometer.pdf
                    Size
                    210 KB
                    Format
                    application/pdf
